This machine adopts international advanced technology; cover the
circle label on the pet bottle. And then hot shrinking to fix on
the position which bottle body designated. This machine's structure
is compact, and suitable for the production line of different
direction and different height.The machinery part adopts
combination designing of modularization, and makes the machine
reasonable. The height adjustment adopts motor fluctuating; it is
convenient to replace the material. The special cutter head
designing, make the film-rolling cut more exactly and reliably.
Washing-filling-capping machine is the core equipment especially
for 5 gallon filling line, which is the ideal equipment for
producing mineral water, pure water and still water. It is made of
quality stainless steel, anti-corrosion and easy to clean.
The machine is used for 3 gallon & 5 gallon water filling, which is
composed of washer, filling and capper.

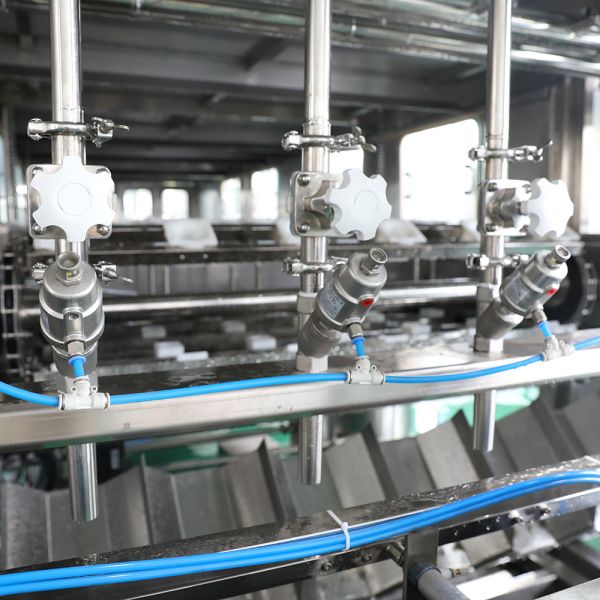

1. 304 stainless steel insert type filling nozzle, two time high
precision filling, filling volume adjustable.
2. Water pump: 304 stainless steel pump. three washing pumps and
one filling pumps.
3. Mitsubishi PLC controlling system, all full-automatic working,
Schneider & Omron brand other electric parts
4. With AIRTAC brand air cylinder, F.R.L. Combination and
Electromagnetism valve for air cylinder.
5. Machine frame and body: all 304 Stainless Steel, combine with
clear fiber glass windows
Details
Cap Decapper
This model automatic decapper is special equipment for 5-gallon
retrieving
barrel. It does not damage caps.
This machine adopts computer control and its capacity can be
adjusted. Cap pulling organism from AIRTAC adopt
pneumatic adjustment, which solves the problems of tolerance of
barrel height and tolerance of barrel's mouth, and
increases cap pulling success greatly. 304 stainless machine frame
and machine body.
Outer Brusher
Function: clean the external of 5 gallon bottles with brush and
water
1. Rotary style to wash the bottle body.
2. Material of machine frame and body: all 304 Stainless Steel.
3. All 304 stainless steel pipeline , valve and connector, fine
polish, no death corner
4. Linear washing style with ø350brush 1pc ø200 brush 3pcs 300*3
brush 20pcs
5. Water pump: with 304 stainless steel pump
6. Washing tank: size 500*300*600*1.2, 304 stainless steel
7. No bottles, no washing

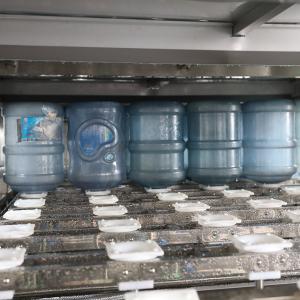

Washing-filling-capping 3-in-1 Monoblock
1. 3-rows 12-washing stops. Everything stop is about 23 seconds
2. 304 stainless steel insert type filling nozzle, two time high
precision filling, filling volume adjustable.
3. Water pump: 304 stainless steel pump. three washing pumps and
one filling pumps.
4. Mitsubishi PLC controlling system, all full-automatic working,
Schneider & Omron brand other electric parts
5. With AIRTAC brand air cylinder, F.R.L. Combination and
Electromagnetism valve for air cylinder.
6. Machine frame and body: all 304 Stainless Steel, combine with
clear fiber glass windows
Conveyor
Function: convey the empty and the filled bottles
1. The total length is subject to layout
2. Motor drive
3. SUS304 stainless steel frame and chain plate
