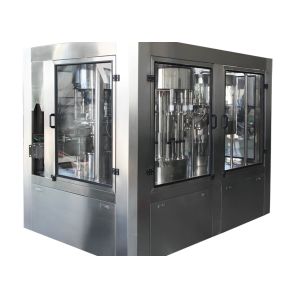

Automatic Rinsing-Filling-Capping 3-in-1 Water Bottling Packaging Equipment

General description

3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of still pure water and mineral water, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.

Main Configuration

• Main motor: ABB
• Sliding bearing: Igus
• Frequency inverter: Mitsubishi
• Touch screen: Pro-face or Mitsubishi
• PLC: Mitsubishi
• Pneumatic components: Airtac
• Photocell switch: Leuze
• Proximity switch: Leuze

Technical Parameters

Model: XGF14-12-5

• Capacity: 5,000BPH (500ml)
• Number of working stations: rinser 14, filler 12, capper 5
• Filling method: Gravity filling
• Applicable bottle: diameter 50-90mm, height 165-290mm
• Air supply pressure: 0.7 MPa
• Air consumption: 0.8M³/min
• Rinsing water pressure: 0.2-0.25 MPa
• Rinsing water consumption: 1 ton/hour
• Rated voltage: 380V
• Main motor power: 2.2Kw
• Installed power: 3.5Kw
• Dimensions: 2200×1550×2650mm (L×W×H)
• Machine weight: 3000Kg

Technical Model:

We can also provide turnkey/complete bottling water production line :
1.Bottle blowing system make PET plastic bottles ( Semi automatic / Fully automatic )
2.Water treatment system purify water (Sand filter,carbon filter,RO/UF ,Ozone sterilizer,UV sterilizer and etc.)
3. Air conveyor for empty bottle loading
4. Rinser-filler-capper 3 in 1 monoblock
5. Cap loader load caps
6. Code printer (Ink-jet printer/ laser-jet printer)
7. Labeling machine ( PVC sleelve labeling machine /OPP hot melt glue labeling machine/Self-adheisive labeling machine )
8. End packaging ( PE shrink wrapping machine / Carton packing machine )

Please feel free to contact us if you are interested in our machines.

About us

Set up in 2008, Sunswell leads the market in the field of liquid bottling, blow molding, labeling, packaging machinery and process technology for water, tea, juice, carbonated drinks, energy drinks, liquid, beer, edible oil, dairy and daily care products, etc.

We can customize liquid food production lines according to customers’ demand. Every customer is the result of our proven experience and innovation. We continually focus on providing customers with advanced technology, engineering and facility that are designed with one motto in mind: ensure you to reach business goals with most optimized planning.

Advantages

Sunswell leads the market in the field of machinery and process technology for liquid packaging

1. the wide range of liquid packaging plant machinery
2. machinery for the most comprehensive scope of processes in connection with liquid packaging
3. worldwide presence
4. 10+ years of global market experience
5. large number of customers worldwide
6. the various range of possible end products

Sunswell is also the exclusive agent of PETALL, a professional air compressor manufacturer.

Leadership in quality and technology from raw material to bottled liquid to recycled plastic chips - Sunswell, A-Z turnkey plant supplier, is known for developing innovative high-end products and new technologies.
