300BPH Automatic Barrel Filling Machine PLC Control

Ask Lasest Price
Brand Name :	SUNSWELL
Model Number :	XGF
Certification :	CE, ISO
Price :	Negotiable
Payment Terms :	T/T, LC,WESTERN UNION
Supply Ability :	100 sets per year
Delivery Time :	50 days

Add to Cart

Product Details
Company Profile

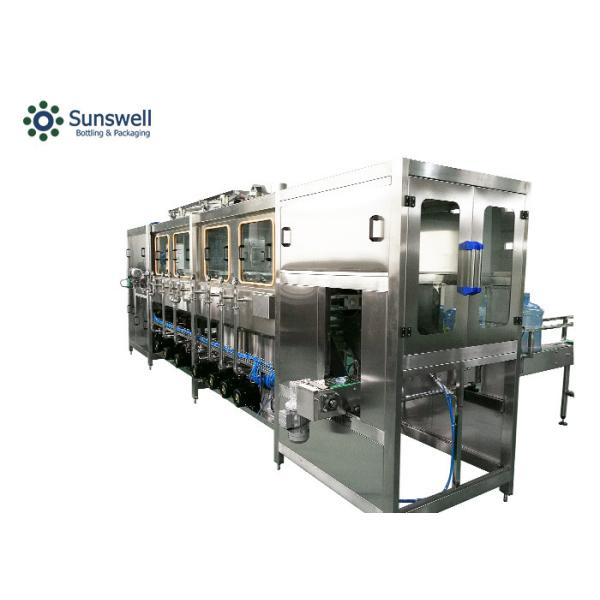

300BPH Automatic Barrel Filling Machine PLC Control

300 BPH Automatic 5 Gallon PET Barrel Mineral Drinking Water Filling Machine

The machine is used for 3 gallon & 5 gallon water filling, which is composed of washer, filling and capper.

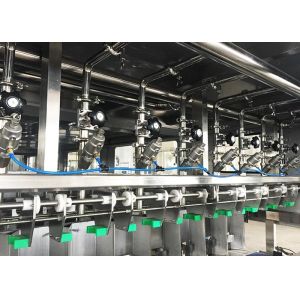

304 stainless steel insert type filling nozzle, two time high precision filling, filling volume adjustable.
Water pump: 304 stainless steel pump. three washing pumps and one filling pumps.
Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts
With AIRTAC brand air cylinder, F.R.L. Combination and Electromagnetism valve for air cylinder.
Machine frame and body: all 304 Stainless Steel, combine with clear fiber glass windows Automatic 5 gallon bottle washing machine

CE/ISO new design 5 gallon bottled water machines/filling machine

Main technical data
Model	QGF-100	QGF-300	QGF-450	QGF-600	QGF-900	QGF-1200	QGF-2000
Number of filling heads	1	2	3	4	8	12	16
Filling capacity	18.9	18.9	18.9	18.9	18.9	18.9	18.9
Barrel size (mm)	φ270×490	φ270×490	φ270×490	φ270×490	φ270×490	φ270×490	φ270×490
Production capacity (b/n)	100-120	200-240	300-400	600	900	1200	2000
Gas pressure (Mpa)	0.4-0.6	0.4-0.6	0.6	0.6	0.6	0.6	0.6
Gas consumption (m3/min)	0.37	0.6	0.6	1.2	2.2	3	4.5
Motor power(kw)	1.75	3.22	4.8	8.5	8.5	8.5	8.5
Rated voltage (V)	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
Overall dimension (mm)	3790×650 ×1550	3550×800 ×1800 2800×1100 ×1800	3550×1200 ×1800 3800×1100 ×1800	3650×1500 ×1800 3800×1100 ×1800	2200×1860 ×2700 not include cleaning	2560×2350 ×2750 not include cleaning	3100×2800 ×2750 not include cleaning
