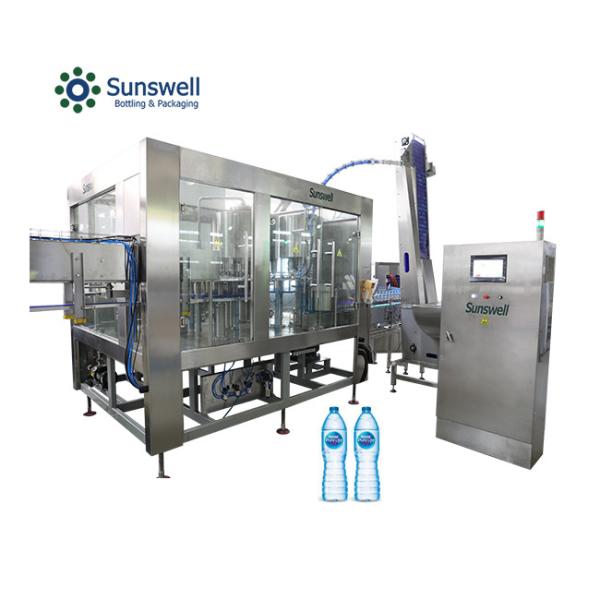

Complete A to Z Rotary Water Purifying and Bottling Machinery Production Line Machine for PET Bottle Pure Water

Ask Lasest Price
Brand Name :	Sunswell
Certification :	ISO,CE
Price :	25000USD
Payment Terms :	L/C, T/T
Supply Ability :	50 Set/Sets per Year
Delivery Time :	60 days

Add to Cart

Product Details
Company Profile

Complete A to Z Rotary Water Purifying and Bottling Machinery Production Line Machine for PET Bottle Pure Water

Sunswell - Water Production Line

We all know that success in water beverage production requires focus on maximum output and efficiency, with commitment to hygiene, food safety and cost optimization.

With over 10 years of experience in designing and implementing customized complete PET and glass line solutions for water,sunswell can help you reach your production targets from water treatment,blowing, filling, labeling, packing, and palletizing up to and including inspection and complete sanitizing.

We can produce pure water ,mineral water, drinking water, soda water, flavored water , natural water ,spring water ,potable
water, flavoured water. Depending on the different packages, we can divide it into two categories: bottled mineral water
line(200ml-2000ml) and barreled mineral water line (1- 5 gallon water line).

The following are the main types of bottles we have been exposed to in the past, from the most common plastic bottles, gallon drums to glass bottles and cans, and we all have a successful complete solution.

Turnkey/complete water production line includes :

1. Bottle blowing system make PET plastic bottles ( Semi automatic / Fully automatic )
2. Water treatment system purify water (Sand filter,carbon filter,RO/UF ,Ozone sterilizer,UV sterilizer and etc.)
3. Air conveyor for empty bottle loading
4. Rinser-filler-capper 3 in 1 monoblock
5. Cap loader load caps
6. Code printer (Ink-jet printer/ laser-jet printer)
7. Labeling machine ( PVC sleelve labeling machine/OPP hot melt glue labeling machine/Self-adheisive labeling machine )
8. End packaging ( PE shrink wrapping machine / Carton packing machine )

Some complete water bottling line projects delivered include:

Maldives - 350ml / 500ml / 1500ml

Saudi Arabia - 5L

Bangladesh - 5 gallon

Products Description

Water Filling Machine

The water filling machine is consisted of ringsing-filling-caping all together. CGF water filling machine adpots the suspension design. It allows the machine to fill different type of the bottles. It is normally used as drinking water filling
machine.However, it can also be used for fill PET bottle with fruit juice and tea at high temperature by simply change tha valve. It can be connected with our others machines to form the water filling machine and packaging machinery production line.

Equipment structure:

1. Rinsing system: Combined with rotary tray with clamp, water distributing tray, water tank and rinsing pump.

2. Filling system:Combined with hydraulic, filling valve, controlling ring, and elevator-cylinder.
3. Capping system: Combined with capper, cap sorter and cap falling track.
4. Driving system: Combined with main motor and gears.
5. Bottle transmitting system: Combined with air conveyor, steel starwheels and neck supporting carrier plates.
6. Electrical controlling system: this part is frequency inverted, PLC controlled and touch screen operated.

1) Bottle infeed

Bottle infeed by combination of infeed starwheels.
Equipped with bottle jam protection device.

2) Rinser

3)Filler

4) Capper

Model	CGF12125	CGF18186	CGF24248	CGF323210	CGF404012	CGF505012
washing, filling and capping heads	12-12-5	18-18-6	24-24-8	32-32-10	40-40-12	50-50-12
Production capacity(600ml) (B/H)	2000-4000	5000-7000	8000-12000	12000-15000	16000-20000	20000-24000
Motor power(kw)	2.2kw	2.2kw	3kw	5.5kw	7.5kw	11kw
Weight (kg)	2500	3500	4500	6500	8500	9800

Company Profile

Maldives

Water Production Line Combiblock

(330/500/1500ml)

USA

Carbonated Water Filling Line

20000BPH

Syria

Carbonated Drink Filling Line

24 000 Cans Per Hour

Any more questions, please feel free to contact us !

Related Products

1. Complete Bottling Lines: Bottling, Labeling, Packaging & Processing

1) Water Treatment System

2) Bolw Molding Machine

3) Filling Machine

4) Labelling Machine

5) Packaging System

Blowing-filling-capping CombiBlock

2. Various liquid packaging

3. Different packaging forms

Any more questions, pls feel free to contact me !

FAQ

Q1: which city are you in? how can I get to your factory? Are you a trading company or factory?
A1: We are in Zhangjiagang city, two hours driving from Shanghai. We are factory. Manufacturing mainly beverage filling and packagingmachines. We offer turnkey solutions with more than 10 years experience.

Q2: Why is your prices higher than others?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.

Q3: What is your delivery time?
A3: Normally 30-60 working days depends one machines, water machines are faster, carbonated drink machines are slower.

Q4: How to install my machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If needed.Or you can arrange engineers to study in our factory. You are responsible for air tickets, accommodation and our engineer wage USD100/day/person.

Q5: How long time for installation?
A5: Subject to machines and the situation in your factory. If everything is ready, it will take about 10 days to 25 days.

Q6: How about the spare parts?
A6: We will send one year enough easy broken spare parts together with the machines for free, we suggest you buy more units tosave international courier such as DHL, it is really costly.

Q7: What is your guarantee?
A7: We have one year guarantee and life-long technical support. Our service also including machine maintence.

Q8: What is your payment term?
A8: 30%T/T in advance as down payment, rest should be paid before shipping. L/C is supported also.
